Product Description

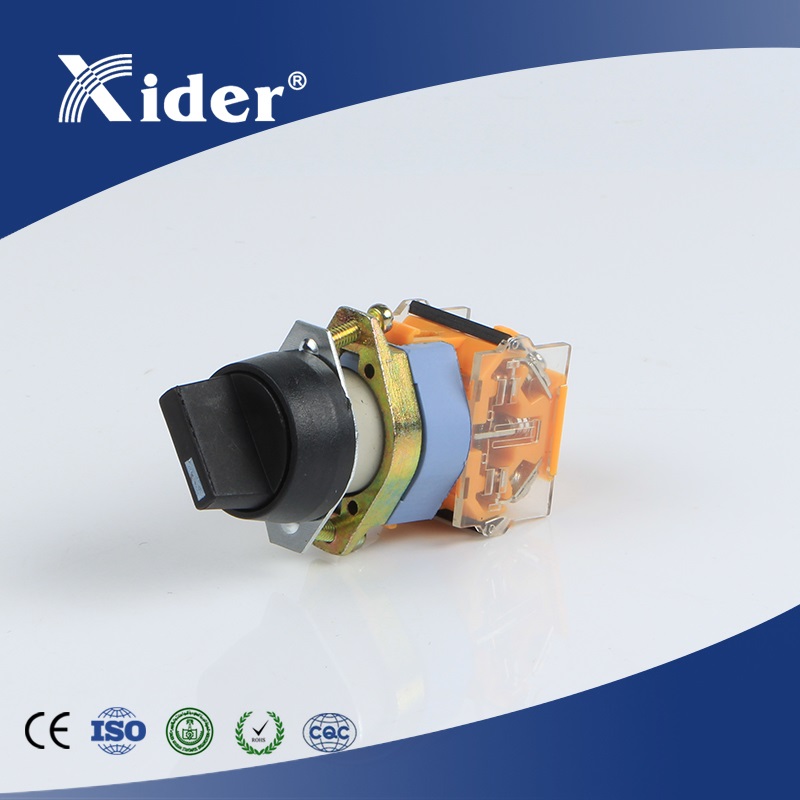

LA38 series 10A industrial control circuits maintain short handle Selector Switch

Quick Details

Place of Origin: Zhejiang, China (Mainland)
Brand Name: XIDER
Model Number: LA38 selector switch
Protection Level: IP40(IP65)
Max. Current: 10A
Max. Voltage: 220/240V
Color: Red Green
Certificate: CE RoHS
Operation type: Momentary,latching
Material: Plastic Function: N/O+N/C


Main technical parameter
1) . Mounting Hole Size :Φ22mm
2) . Switch Rating:5A/250VAC
3) . Contact Configuration:1NO1NC
4) . Operation Type: Momentary, Latching
5) . The Crust Material:Stainless Steel
6) . Protection Degree:IP40, ( IP65 Can be made to order )

Working temperature (-25°C ~ +55°C) No frozen The around of light switch body must be airiness
Work environment humidity 45-85%RH Non condening
Contact material Silver cadmium oxideS ilver plated gold plating thickness
Contact resistance ≤50mΩ
Insulation resistance ≥100mΩ
Contact between lamp bead pin 2000V,AC50Hz,1min
Between same class terminal 1000V,AC50Hz,1min
Between different electrode terminal 2000V,AC50Hz,1min
Vibration proof 50HZ,Amplitude about 1.2mm
Impact resistance Greater than 10g
Mechanical Life 1,000,000 times
Electric   Life Above 30,000 times
Dia of welding Dia of welding line 2×0.85
Max copper wire area Max copper wire area 0.75mm2
Wiring insert: Wiring insert:2.8 0.5mm
Operating distance button about 3mm
