Product Description

XB-EA31 EA42 spring return Push Button Switch with plastic body

Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Xider
Model Number: XB-EA31
Protection Level: IP65
Max. Current: 10A
Max. Voltage: 660V
Certificate: CCC,CE RoHS
Material: Plastic
Operation type: Momentary Button
color: White Black Green Yellow Blue

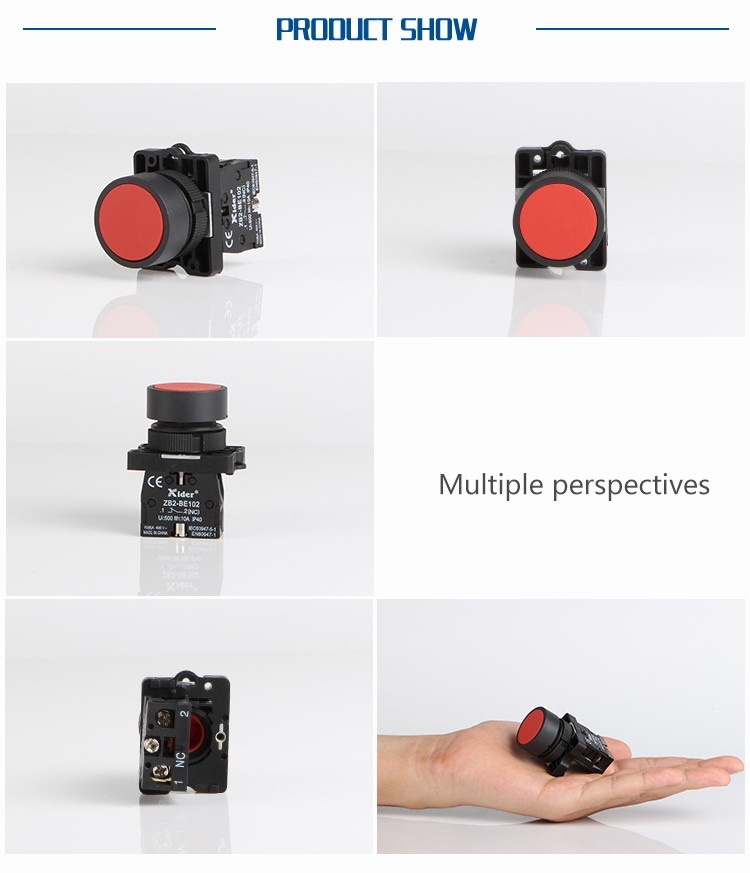

XB-EA31 spring return Push Button Switch

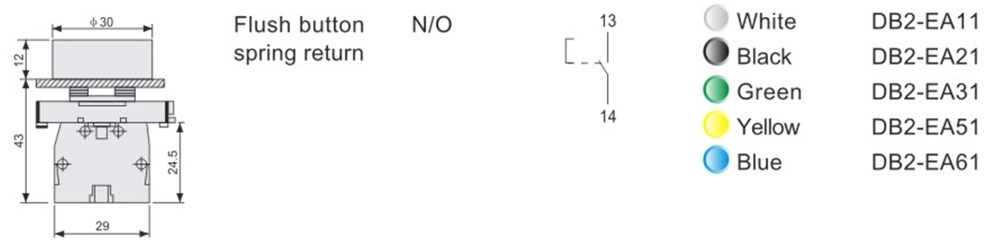

spring return Push Button Switch

XB-EA31 spring return Push Button Switch

Brief introduction
The push button series was used in control circuit of AC 50Hz or 60Hz,voltage to 660V, DC voltage up to 440V below, it is used for controlling signal and interlocking, The main body adopts zinc alloy or high grade anti-flaming plastic, the contact adopts special silver alloy, so it has strong anti-electrical erosion property, the signal lamp series is suitable for electrical appliance circuit of AC voltage 380V, 50Hz or 60Hz, DC voltage up to 380V below, it is used as kinds of lights indication signal, warning signal, accident signal and other signals. Our products comply with GB/T14048.1 and IEC60947-5-1, all products were get CE, RoHS certification.

Work environment
1) . Environment tem perature:-25 — +55℃;
2) . Air relative humidity: < 85%.
3) . Normal work when the vibration frequency is 2-80Hz,the acceleration is 0.79;
4) . Pollution grade is 3, installation sort is ill, protection grade is above Ip65.
5) . Altitude:2000 < m

Main technical parameter

Basic technical  parameter of button   Basic technical parameter of signal lamp
Rated insulation voltage AC 600V (50Hz/60Hz)   Insulation resistance > 50M Ω
Conventional heating current 10A   Contact resistance < 25M Ω
Insulation resistance 50M Ω   Pf withstand voltage AC2.5KV 1min
Contact resistance 25M Ω   Voltage wave ±20%
Mechanical life 100x104(Pushbutton) 50X104 Selector switch  Key swiches Brightness 60cd 1m2
Electrical life 50x104(Pushbutton)  25x104 Selector switch  Key swiches Continuous working life 10x104h
